Kriega US Drypack Fit Kit Yamaha Tenere 700 2021
The kit consists of high quality hypalon & nylon webbing loops, that easily fit under the pillion seat using the existing mounting locations.
Once fitted, they provide strong hook-on points for any Kriega US-Drypack or US-Drypack Combo.
- 2 x bolt-on loops - 95mm - 6mm hole
- 2 x bolt-on loops - 65mm - 5mm hole
- 4 x M6 washers
- 4 x M5 washers
- Slide an M6 washer inside each hypalon end of the bolt-on loops.
- Add an M6 washer on top and mount the 95mm loops to the underside of the seat using existing seat strap bolts.

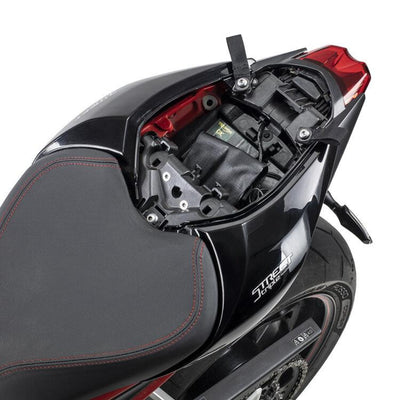

- Mount the 65mm loops in the same way to the bike subframe using the M5 washers and existing bolts as illustrated.
